Name: Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR
Brand: Nanjing Skypro Rubber&Plastic Co.,ltd
SKU: SK3002
Price: 1.00 USD
Availability: InStock

होम उत्पाद Neoprene रबड़ शीट

Cloth Insertion Gasket Nylon Insert Rubber Sheet With SBR NBR EPDM NR

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	skypro
मॉडल संख्या:	SK3002

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	200

संपर्क करें

विस्तृत उत्पाद विवरण

सामग्री:	एनआर + एसबीआर	मोटाई:	1-50 मिमी
कठोरता:	60 +/- 5 तट	उत्पादन की मोटाई:	2-10 मिमी
लंबाई:	10-50 मी	चौड़ाई:	500मिमी-3000मिमी
निवेशन सामग्री:	कपास, नायलॉन या ईपी	सतही समापन:	चिकना या बनावट वाला
नाली की संख्या:	1 या 2 या 3 परतें	कठोरता तट:	ए 65 +/- 5
घनत्व:	1.5 ग्राम/सेमी 3	तन्यता ताकत:	3 एमपीए
बढ़ाव:	200-300%	रंग:	काला
प्रसंस्करण सेवा:	ढालना, काटना
प्रमुखता देना:	Nylon insert rubber gasket , SBR neoprene rubber sheet , EPDM cloth insertion gasket

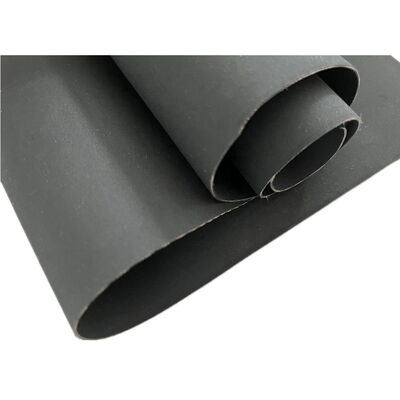

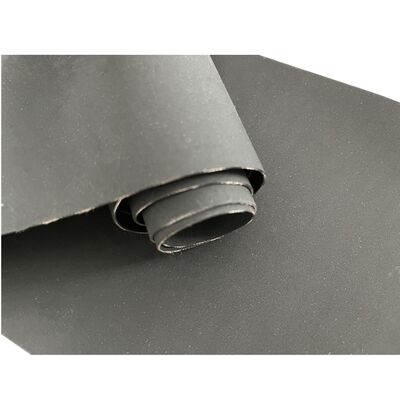

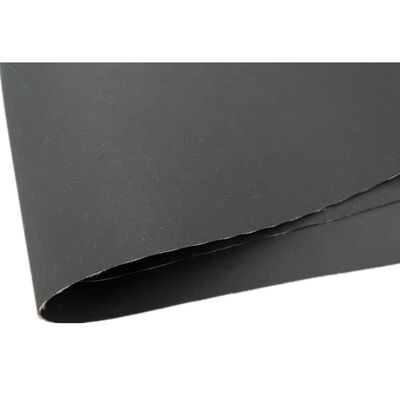

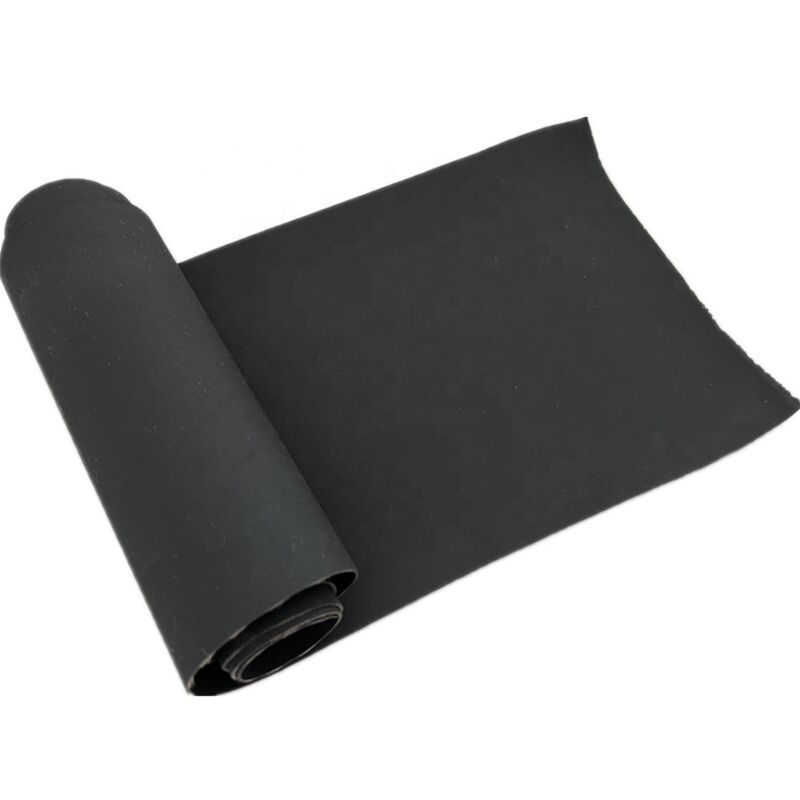

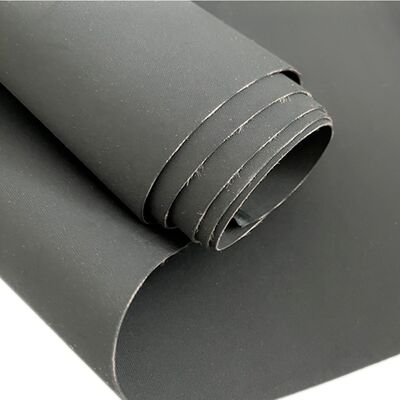

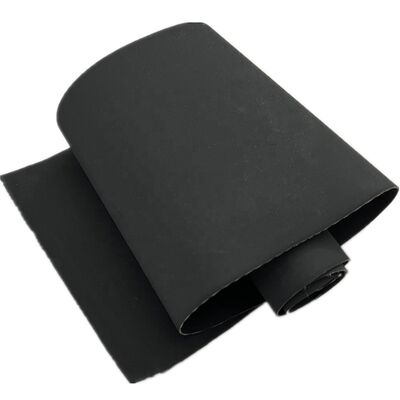

Cloth Insertion Gasket Nylon Insert Rubber Sheet

High-performance fabric-reinforced rubber sheet with SBR, NBR, EPDM, or NR materials for industrial gasketing applications.

Product Specifications

Product Name	Cloth Insertion Rubber Sheet
Material	SBR
Production Range	Thickness: 2-10 mm Length: 10-50 m Width: 500mm-3000mm
Color	Black
Insertion Material	Cotton, nylon or EP
Surface Finish	Smooth or textured
Number of Plies	1, 2 or 3 plies
Hardness	Shore A 65 +/- 5
Density	1.5 g/cm³
Tensile Strength	3 MPa
Elongation	200-300%

Key Features

Made with SBR rubber with incremental cloth insert reinforcement throughout material thickness
Enhanced durability and superior strength under both hot and cold loads
Primarily used in gasketing applications as high-strength diaphragms
Ideal for high-pressure and low-pressure junction applications

Packaging & Transportation

Packing Method	Rolled or flat sheet, 50-100kg/roll or custom specifications
Packing Material	Inner PE film + outer woven plastic bags, palletized for extra reinforcement
Shipping Marks	Neutral packing with printed marks
Delivery Time	15 days after PO and down payment receipt
Freight Options	Sea (FCL & LCL) or air freight
Special Sizes	Custom cutting services available
Lamination	Additional lamination with PSA, textiles, or other materials
